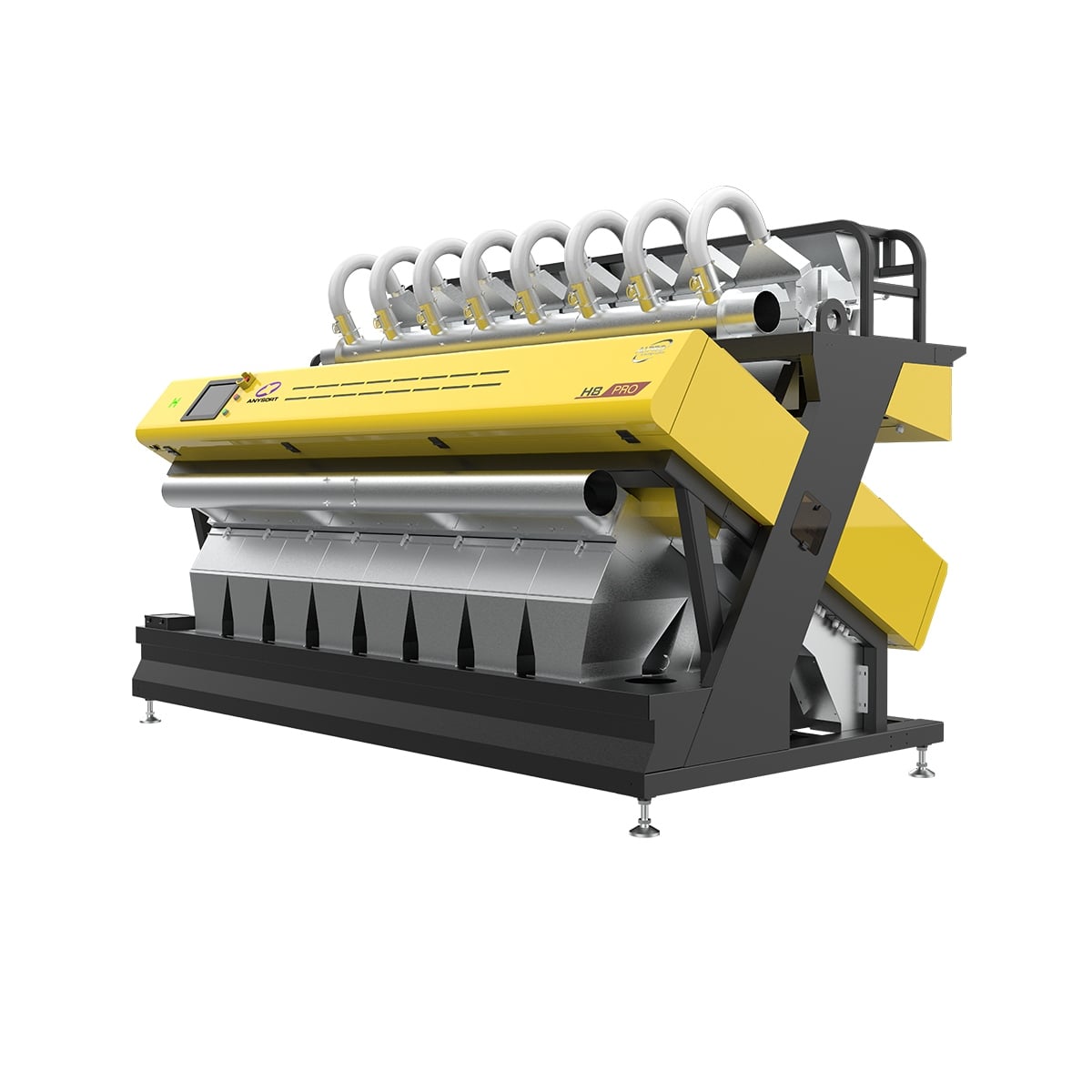

H Series Multi-functional Grain AI Cloud Quality Sorter
The H Series AI sorter handles 10-30mm dusty, oily materials using AI model and MPF technology for precise color, shape, size and material identification. Featuring the world's largest hopper and PLOV platform for uniform high-throughput feeding, it delivers ultra-high impurity removal with enhanced shape sorting capabilities.
Description
The H series coarse grain quality sorting AI Super Agent is sorting 10mm–30mm materials with high levels of dust and oil contamination. Powered by an AI quality sorting model and equipped with MPF Multi-pixel Fusion Technology, it accurately identifies subtle differences in color, shape, size and material, comprehensively enhancing the capabilities of shape sorting and malignant impurity removal.It features the world’s largest hopper, and the PLOV physical structure platform technology ensures uniform feeding even during high-throughput sorting, delivering an ultra-high impurity removal rate.
Advantage
1.High Throughput, High Precision, Low Carryover
2.With significantly enhanced abilities for color sorting, shape sorting, and impurity sorting for grain crops, it is able to rapidly remove discolored grains such as broken, shrunken, worm eaten, and immature grains.
3.The world's largest storage bin, combined with PLOV physical structural platform technology, ensures materials are uniformly spread and dropped, enhancing clarity in identification and precision in sorting, resulting in higher finished product yield and allowing the output of one machine to equal two other machines.
4.Multi-grade sorting and simultaneous grading of both products and by-products ensure comprehensive resource utilization and increase added value of products.
Product Parameters
| Model | Throughput（T/h） | Accuracy（%） | Carryover Ratio | Host Machine Power（kw）（Impurities Ratio 10%） | Power Supply |
Dimensions (with Filter) L*W*H(mm) |
Weight（kg） | Air Consumption m³/min |
| H1 | 0.5-2.0 | ≥99.99 | ＞30:1 | 1.0 | 220V/50Hz | 1589*1816*2177 | 792 | <1.0 |
| H2 | 0.5-3 | ≥99.99 | ＞30:1 | 1.6 | 220V/50Hz | 1589*1816*2177 | 885 | <1.5 |
| H3 | 1-6 | ≥99.99 | ＞30:1 | 2.1 | 220V/50Hz | 2269*1816*2177 | 1180 | <1.8 |
| H4 | 1-9 | ≥99.99 | ＞30:1 | 2.7 | 220V/50Hz | 2269*1816*2177 | 1270 | <2.1 |
| H5 | 5.0-15 | ≥99.99 | ＞30:1 | 3.2 | 220V/50Hz | 2609*1816*2177 | 1470 | <2.4 |
| H7 | 5.5-18 | ≥99.99 | ＞30:1 | 4.6 | 220V/50Hz | 3289*1816*2177 | 1850 | <3.0 |
| H8 | 5.5-20 | ≥99.99 | ＞30:1 | 5.2 | 220V/50Hz | 3629*1816*2177 | 2050 | <3.3 |
| H10 | 7-28 | ≥99.99 | ＞30:1 | 6.4 | 220V/50Hz | 4309*1816*2177 | 2410 | <3.9 |
| H12 | 7-30 | ≥99.99 | ＞30:1 | 7.6 | 220V/50Hz | 4989*1816*2177 | 2800 | <4.5 |
Core Technologies
Multimodal AI Quality Sorting Large Model
ANYSORT multimodal AI quality sorting large model leverages powerful computing to achieve faster sorting model setup, more accurate discrimination, quicker model training and deployment, and advanced automated data analysis.
PLOV Platform 3.0
The intelligent uniform distribution sorting structure has been innovatively upgraded to PLOV 3.0, ensuring materials are always spread evenly without overlapping during high-speed, high-yield sorting processes.
Hawkeye Camera Technology 4.0
AI + Hawkeye camera technology enables clearer high-speed dynamic imaging with more precise and intelligent identification.
MPF Multi-Pixel Fusion Technology
It essentially distinguishes different substances based on the spectral fingerprint characteristics of each material.
