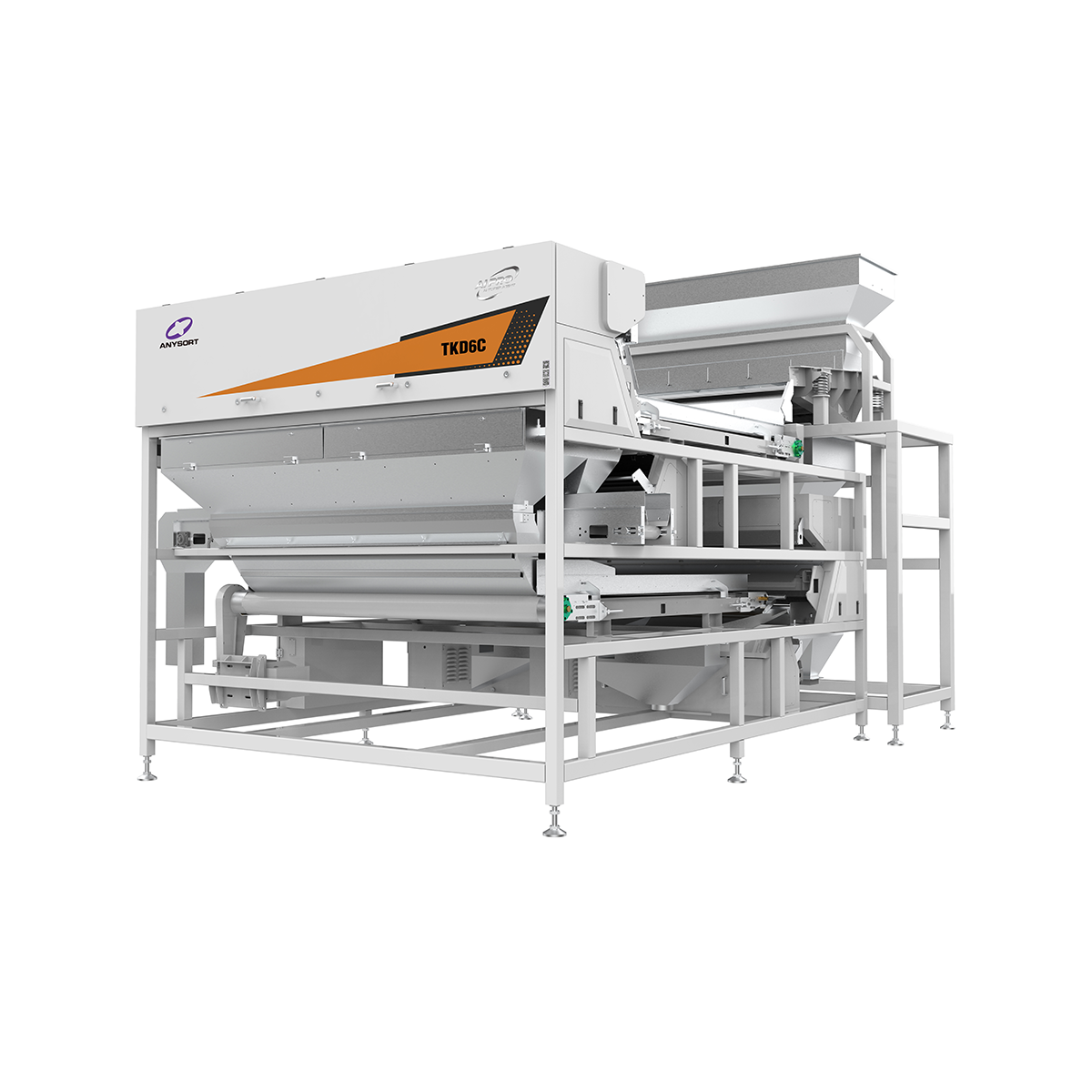

TKD Series Double Layer Mineral AI Cloud Quality Sorter
The TKD Series Mineral AI sorter is a high-speed double-layer belt machine for 1-8mm and 8-50mm ores including quartz, calcium carbonate, feldspar, cobblestones and glass. Featuring an extra-wide surface and industry-leading throughput, it enables direct one-step purification without pre-screening, delivering ultra-high precision with minimal loss for maximum product value.
Description
The TKD Series Mineral Quality Sorting AI Super Agent is a high-speed double-layer belt sorter. Engineered for materials with particle sizes of 1–8 mm and 8–50 mm, it is widely applicable for sorting ores such as quartz stone, calcium carbonate, potassium feldspar, cobblestones and glass.
Boasting an extra-wide sorting surface and an industry-leading high throughput, it eliminates the need for complex pre-screening and achieves direct purification in one step. With ultra-high precision and minimal material loss, it enables high-value utilization of finished products.
Advantage
1.Extra-wide sorting surface, delivering industry-leading high throughput.
2.Ultra-high precision & minimal material loss, enabling high-value utilization of finished products.
3.Far superior sorting capability than peers; no complex pre-screening required, achieving direct purification in one step.
Product Parameters
| Material Type | Model | Material Size | Throughput（T/h） | Accuracy（%） | Carryover Ratio | Host Machine Power（kw）（Impurities Ratio 10%） | Power Supply |
Dimensions (with Filter) L*W*H(mm) |
Weight（kg） | Air Consumption m³/min |
| Dry ore materials | TKD6 | 8-50mm | 9-26 | ≥99.95 | ＞5:1 | 10.7 | 380V/50Hz | 5025*3220*2815 | 3150 | <5.0 |
| TKD6X | 1mm-8mm | 8-15 | ≥99.95 | ＞5:1 | 13.8 | 380V/50Hz | 4440*3040*3040 | Based on actual production weighing | <7.5 | |
| Wet ore materials | TKD6C | 8-50mm | 9-26 | ≥99.95 | ＞5:1 | 10.7 | 380V/50Hz | 5025*3220*2815 | 3150 | <5.0 |
| TKD6S | 8-50mm | 9-26 | ≥99.95 | ＞5:1 | 10.7 | 380V/50Hz | 5025*3220*2815 | 3150 | <5.0 |
Core Technologies
Multimodal AI Quality Sorting Large Model
ANYSORT multimodal AI quality sorting large model leverages powerful computing to achieve faster sorting model setup, more accurate discrimination, quicker model training and deployment, and advanced automated data analysis.
PLOV Platform 3.0
The intelligent uniform distribution sorting structure has been innovatively upgraded to PLOV 3.0, ensuring materials are always spread evenly without overlapping during high-speed, high-yield sorting processes.
Hawkeye Camera Technology 4.0
AI + Hawkeye camera technology enables clearer high-speed dynamic imaging with more precise and intelligent identification.
MPF Multi-Pixel Fusion Technology
It essentially distinguishes different substances based on the spectral fingerprint characteristics of each material.
Independent Environmental Purification Technology
The intelligent autonomous regulation system ensures that sorting accuracy and performance remain unaffected by dust and other interfering factors even under complex working conditions.
Somersault Cloud Platform
The integrated hub of AI super agent interconnection realizes the intelligent control of production line equipment, forms a production line closed-loop control system, links efficiently and leads the era of unmanned 3.0 intelligent factories.
