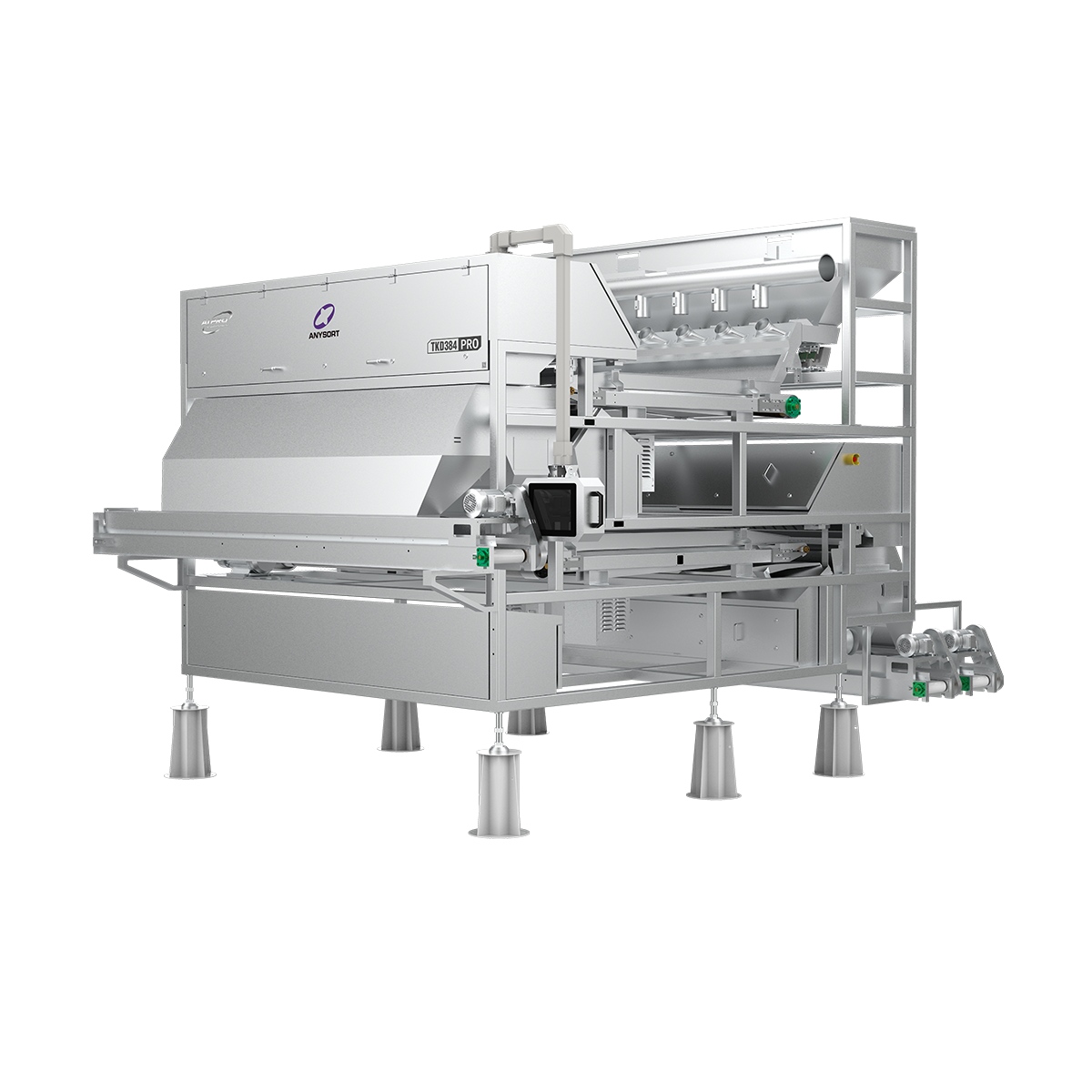

TKD PRO Series High Speed Double Layer Grain AI Cloud Quality Sorter
The TKD PRO Series is a high-speed double-layer belt sorter with PLOV technology for gentle handling and maximum breakage prevention. Its open stainless steel structure resists water, oil and dust, ensuring food safety compliance while enabling multi-stage precision sorting and one-step grade classification.
Description
The TKD PRO Series Coarse Grain Quality Sorting AI Super Agent is a high-speed double-layer belt sorter and an upgraded version of the TKD Series. Its double-layer belt design, integrated with PLOV physical structure technology, enables gentle material descent, minimizes breakage to the greatest extent, and significantly boosts the yield of high-quality finished products.
Featuring an open stainless steel structure with water, oil and dust resistance, it meets higher food safety standards, complies with food production hygiene regulations, and ensures product safety. It achieves multi-stage precision sorting and one-step classification for various grades.
Advantage
1.High throughput, high precision, low breakage rate.
2.Open stainless steel structure for higher food safety compliance.
3.Full-featured precision sorting by color, shape and size to meet customized production requirements of factories.
4.Double-layer belt design enables multi-stage precision sorting and one-step classification of various grades.
Product Parameters
| Throughput（T/h） | Accuracy（%） | Carryover Ratio | Host Machine Power（kw）（Impurities Ratio 10%） | Power Supply |
Dimensions (with Filter) L*W*H(mm) |
Weight（kg） | Air Consumption m³/min |
| 0.5-3 | ≥99.50 | ＞30:1 | 4.5 | 380V/50Hz | 4170*1245*2490 | Based on actual production weighing | <1.2 |
| 0.5-6 | ≥99.50 | ＞30:1 | 5 | 380V/50Hz | 4170*1565*2490 | 1820 | <1.8 |
| 0.5-9 | ≥99.50 | ＞30:1 | 7.3 | 380V/50Hz | 4170*1885*2490 | Based on actual production weighing | <2.4 |
| 1.5-12 | ≥99.50 | ＞30:1 | 7.8 | 380V/50Hz | 4145*2250*2340 | 3500 | <3.0 |
| 1.5-16 | ≥99.50 | ＞30:1 | 10 | 380V/50Hz | 4170*2525*2490 | Based on actual production weighing | <4.0 |
| 2.0-18 | ≥99.50 | ＞30:1 | 12 | 380V/50Hz | 4195*2890*2340 | 4110 | <5.0 |
Core Technologies
Multimodal AI Quality Sorting Large Model
ANYSORT multimodal AI quality sorting large model leverages powerful computing to achieve faster sorting model setup, more accurate discrimination, quicker model training and deployment, and advanced automated data analysis.
PLOV Platform 3.0
The intelligent uniform distribution sorting structure has been innovatively upgraded to PLOV 3.0, ensuring materials are always spread evenly without overlapping during high-speed, high-yield sorting processes.
Hawkeye Camera Technology 4.0
AI + Hawkeye camera technology enables clearer high-speed dynamic imaging with more precise and intelligent identification.
MPF Multi-Pixel Fusion Technology
It essentially distinguishes different substances based on the spectral fingerprint characteristics of each material.
