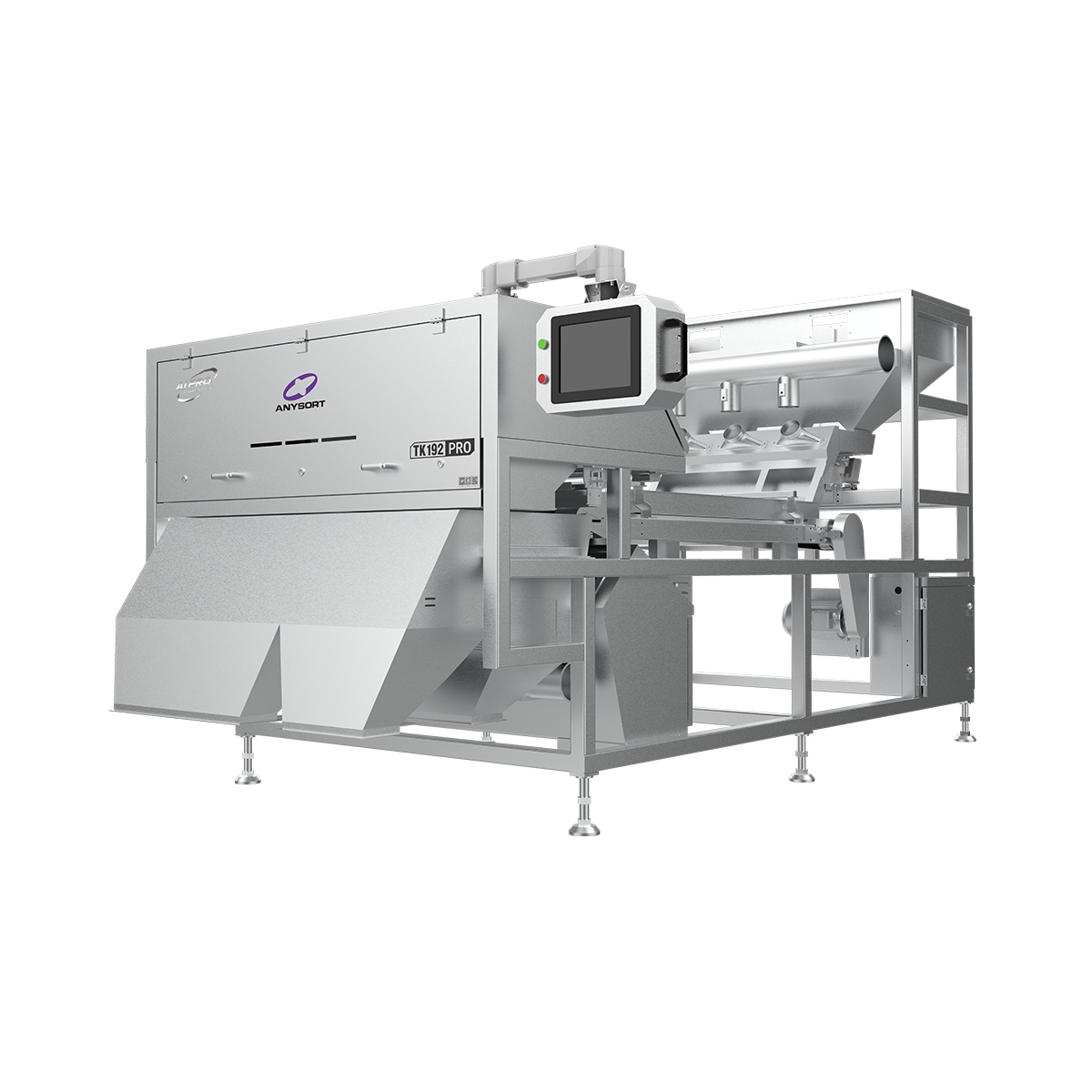

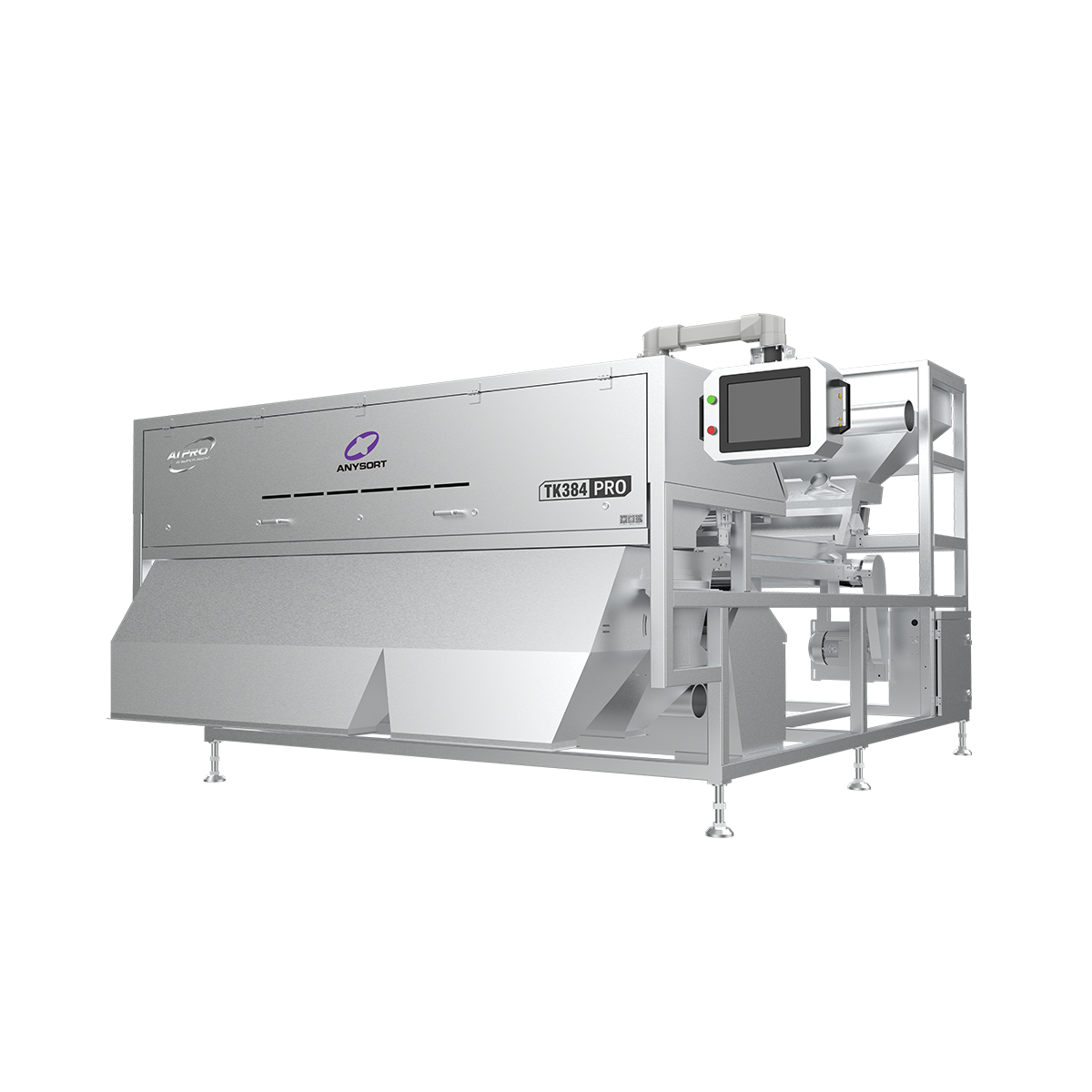

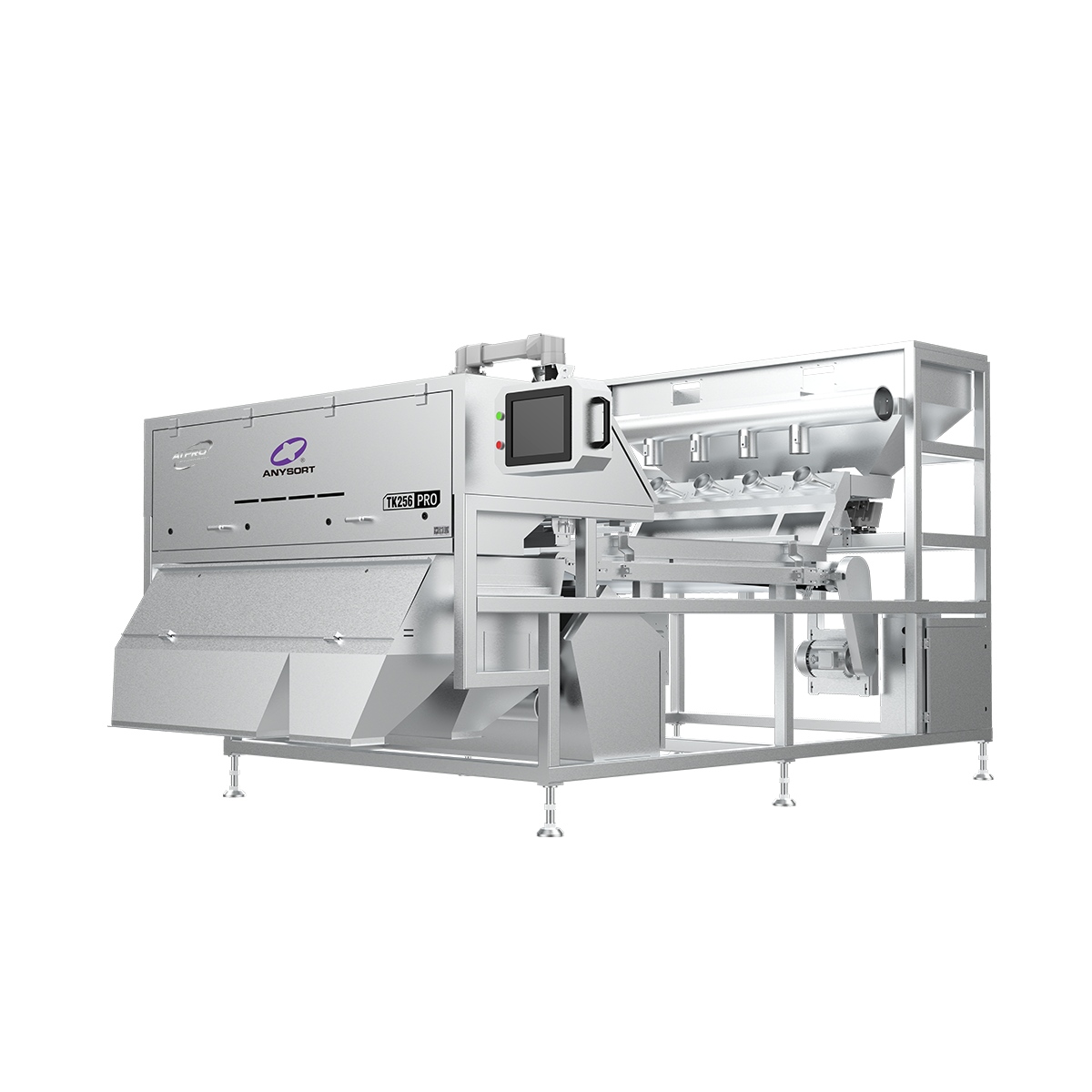

TK PRO Series High Speed Single Layer Grain AI Cloud Quality Sorter
The TK PRO Series AI sorter is a high-speed single-layer belt machine for 20-100mm dry granular materials. Featuring an open stainless steel structure with water/oil/dust resistance, PLOV platform for gentle handling, AI Large Model for precision identification, and MPF technology for defect detection, it ensures food safety compliance and minimal breakage.
Description
The TKD PRO Series Coarse Grain Quality Sorting AI Super Agent is a high-speed double-layer belt sorter and an upgraded version of the TKD Series. Its double-layer belt design, integrated with PLOV physical structure technology, enables gentle material descent, minimizes breakage to the greatest extent, and significantly boosts the yield of high-quality finished products.
Featuring an open stainless steel structure with water, oil and dust resistance, it meets higher food safety standards, complies with food production hygiene regulations, and ensures product safety. It achieves multi-stage precision sorting and one-step classification for various grades.
Advantage
1.High throughput, high precision, low breakage rate.
2.Open stainless steel structure for higher food safety compliance;
3.Full-featured precision sorting by color, shape and size to meet customized production requirements of factories.
4.Double-layer belt design enables multi-stage precision sorting and one-step classification of various grades.
Product Parameters
| Model | Throughput（T/h） | Accuracy（%） | Carryover Ratio | Host Machine Power（kw）（Impurities Ratio 10%） | Power Supply |
Dimensions (with Filter) L*W*H(mm) |
Weight（kg） | Air Consumption m³/min |
| TKD64 PRO | 0.5-3 | ≥99.50 | ＞30:1 | 4.5 | 380V/50Hz | 4170*1245*2490 | Based on actual production weighing | <1.2 |
| TKD128 PRO | 0.5-6 | ≥99.50 | ＞30:1 | 5 | 380V/50Hz | 4170*1565*2490 | 1820 | <1.8 |
| TKD192 PRO | 0.5-9 | ≥99.50 | ＞30:1 | 7.3 | 380V/50Hz | 4170*1885*2490 | Based on actual production weighing | <2.4 |
| TKD256 PRO | 1.5-12 | ≥99.50 | ＞30:1 | 7.8 | 380V/50Hz | 4145*2250*2340 | 3500 | <3.0 |
| TKD320 PRO | 1.5-16 | ≥99.50 | ＞30:1 | 10 | 380V/50Hz | 4170*2525*2490 | Based on actual production weighing | <4.0 |
| TKD384 PRO | 2.0-18 | ≥99.50 | ＞30:1 | 12 | 380V/50Hz | 4195*2890*2340 | 4110 | <5.0 |
Core Technologies
Multimodal AI Quality Sorting Large Model
ANYSORT multimodal AI quality sorting large model leverages powerful computing to achieve faster sorting model setup, more accurate discrimination, quicker model training and deployment, and advanced automated data analysis.
PLOV Platform 3.0
The intelligent uniform distribution sorting structure has been innovatively upgraded to PLOV 3.0, ensuring materials are always spread evenly without overlapping during high-speed, high-yield sorting processes.
Hawkeye Camera Technology 4.0
AI + Hawkeye camera technology enables clearer high-speed dynamic imaging with more precise and intelligent identification.
MPF Multi-Pixel Fusion Technology
It essentially distinguishes different substances based on the spectral fingerprint characteristics of each material.
Independent Environmental Purification Technology
The intelligent autonomous regulation system ensures that sorting accuracy and performance remain unaffected by dust and other interfering factors even under complex working conditions.
Somersault Cloud Platform
The integrated hub of AI super agent interconnection realizes the intelligent control of production line equipment, forms a production line closed-loop control system, links efficiently and leads the era of unmanned 3.0 intelligent factories.
