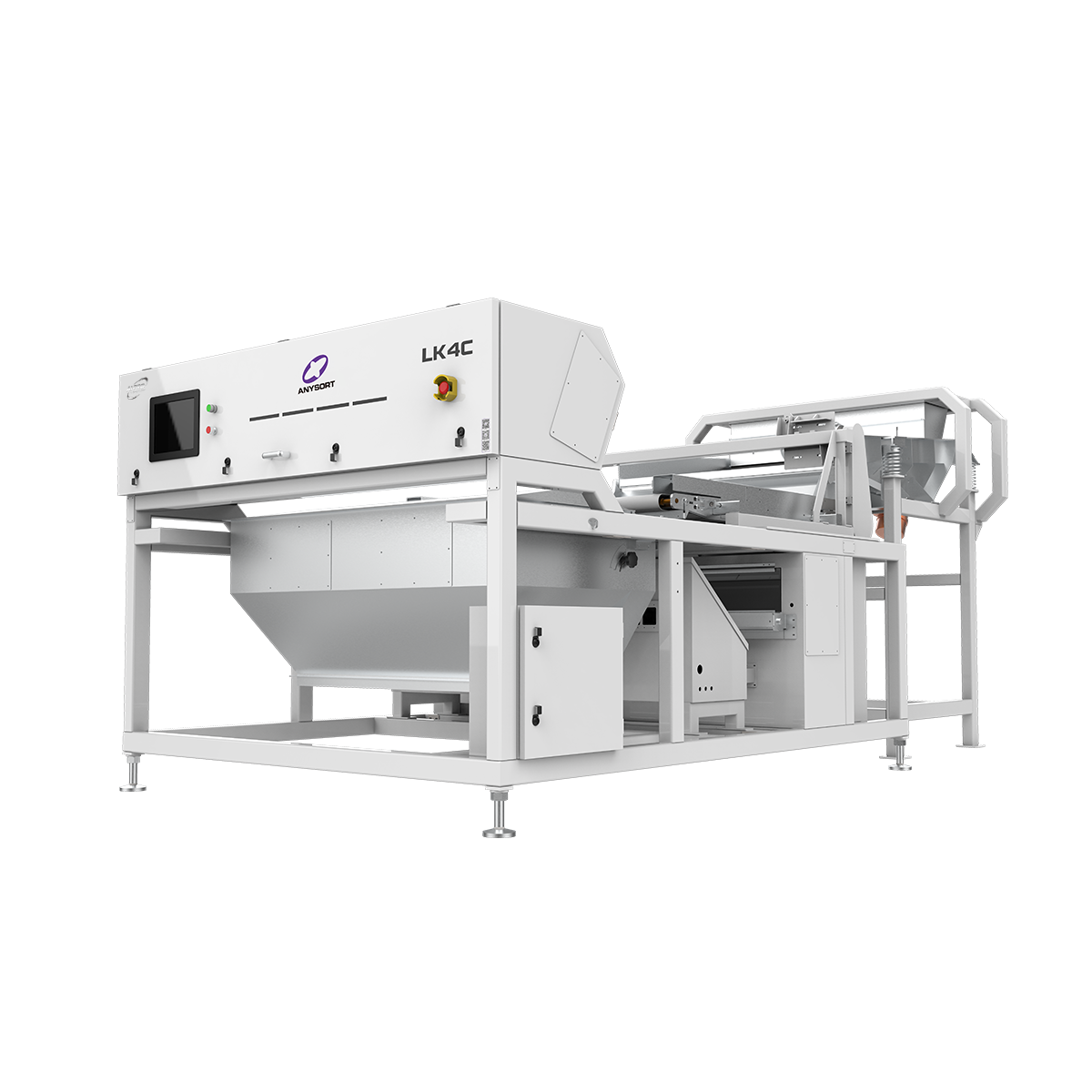

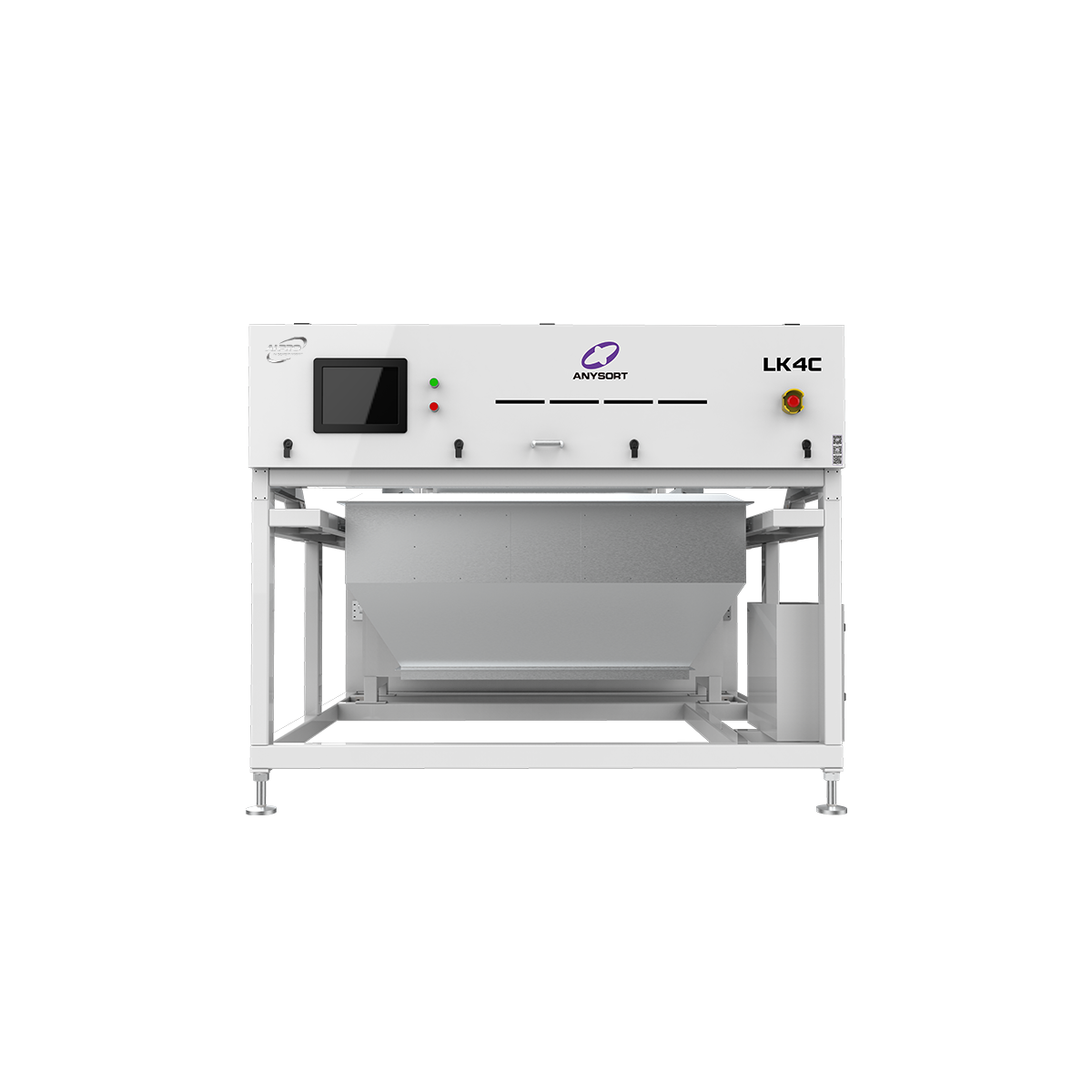

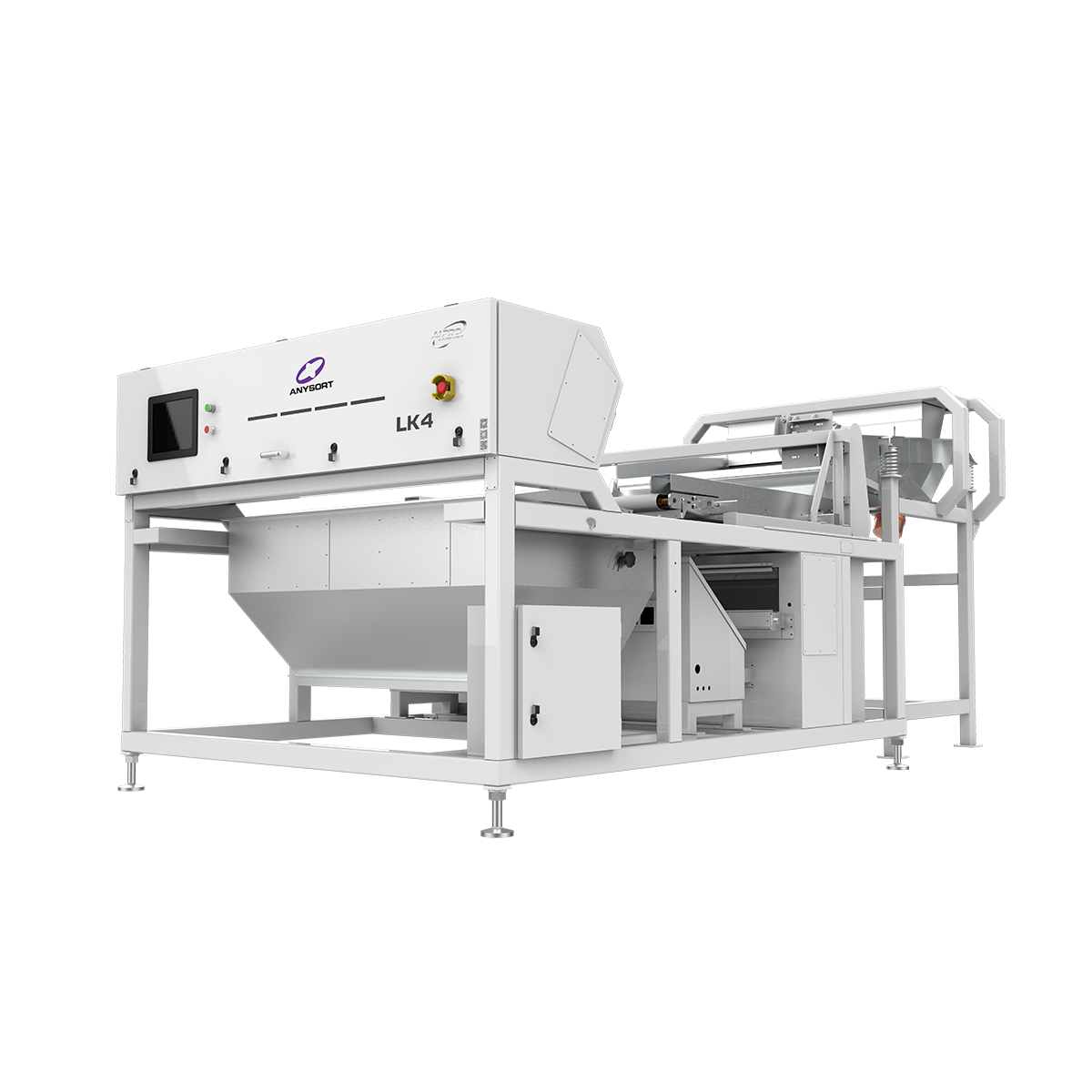

LK Series Single Layer Large Particle Mineral AI Cloud Quality Sorter
The LK Series Ore AI sorter handles 30-80mm dry/wet materials including quartz, calcite, barite, feldspar and even lightweight metals like copper/aluminum foil. Its flexible-feeding design minimizes wear, extends lifespan, and ensures precise sorting in harsh environments while providing multi-dimensional solutions for recyclables like glass, metal, construction waste and medical waste.
Description
The LK Series Ore Quality Sorting AI Super Agent is a large particle dry and wet dual-purpose quality sorter.Capable of sorting materials ranging from 30mm to 80mm, including quartz stones, calcite, barite, potassium feldspar, and other large-particle minerals, and even light weight materials like copper and aluminum foils. This enables broad-range and full-specification coverage. In the face of humid, worn and complex environments, it still maintains precise sorting. The flexible-feeding design minimizes mechanical wear, extends machine lifespan, and ensures consistent performance.
It also provides multi-dimensional sorting solutions based on size, shape, and material for a wide range of recyclable materials including waste glass, scrap metal, construction waste, waste wood, slag, and medical waste, thereby enhancing resource recovery rates.
Advantage
1.High-capacity dry-wet ore sorter for large-particle materials, equipped with ultra-high-speed valves for maximized throughput.
2.Delivers consistent performance even under extreme production conditions,resolves issues such as wet material adhesion.
3.High throughput, high precision, and minimal material loss.
Product Parameters
| Model | Throughput（T/h） | Accuracy（%） | Carryover Ratio | Host Machine Power（kw）（Impurities Ratio 10%） | Power Supply |
Dimensions (with Filter) L*W*H(mm) |
Weight（kg） | Air Consumption m³/min |
| LK4 | 6-14 | ≥99.95 | ＞5:1 | 3.2 | 380V/50Hz | 4300*2120*1910 | 1760 | <2.0 |
| LK4C | 6-14 | ≥99.95 | ＞5:1 | 3.2 | 380V/50Hz | 4300*2120*1910 | 1760 | <2.0 |
Core Technologies
Multimodal AI Quality Sorting Large Model
ANYSORT multimodal AI quality sorting large model leverages powerful computing to achieve faster sorting model setup, more accurate discrimination, quicker model training and deployment, and advanced automated data analysis.
PLOV Platform 3.0
The intelligent uniform distribution sorting structure has been innovatively upgraded to PLOV 3.0, ensuring materials are always spread evenly without overlapping during high-speed, high-yield sorting processes.
Hawkeye Camera Technology 4.0
AI + Hawkeye camera technology enables clearer high-speed dynamic imaging with more precise and intelligent identification.
MPF Multi-Pixel Fusion Technology
It essentially distinguishes different substances based on the spectral fingerprint characteristics of each material.
Independent Environmental Purification Technology
The intelligent autonomous regulation system ensures that sorting accuracy and performance remain unaffected by dust and other interfering factors even under complex working conditions.
Somersault Cloud Platform
The integrated hub of AI super agent interconnection realizes the intelligent control of production line equipment, forms a production line closed-loop control system, links efficiently and leads the era of unmanned 3.0 intelligent factories.
